Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
Product Features of Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
C3-100 is one of the most rugged and reliable one door controller on the market, with a multitude of built-in features.

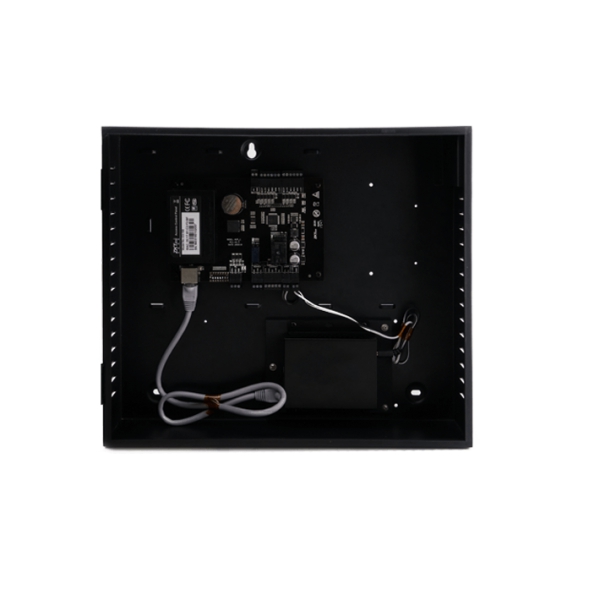

In this bundle, the PoE splitter can offer 12V 2A DC for both C3-100 and one 12V DC lock. On the input side, just need connect the splitter to a PoE switch.
Specification of C3-100 |
|
User Capacity |
30,000 |
Event Buffer |
100,000 transactions |
Communication |
RS485, Ethernet |
Nominal Voltage of C3-100 |
12v |
Standby Current of C3-100 |
40mA |
Operating Temp |
0°C~ 45 °C |
Operating Humidity |
20%~ 80% |
Number of doors controlled |
One door |
Number of readers Supported |
2 |
Aux. Output |
1 |
Types of readers supported |
26-bit Wiegand, others upon request |
Number of Inputs |
2 (Exit Device and Door Status) |
Number of Outputs |
2 (One Form C relay for lock and one Form C relay for Aux output) |
Weight |
3.35kg |
Dimensions (Bundle Only) |
305.2mm × 298.4mm × 89mm |
Dimensions ( Board Only) |
160mm × 106mm |
Specification of POE Splitter |
|
Maximum Power |
15.4W (IEEE 802.3af)ï¼›25.5W (IEEE 802.3at) |
Input voltage |
36-57V |
Output voltage: |
12V |
Network standards |
IEEE802.3i 10 BASE-T IEEE802.3i 100 BASE-TX IEEE802.3x flow control IEEE802.3af/ IEEE802.3at |
Working Temperature |
0°C ~ 45 °C |
Interface protection |
Meet the IEC61000-4-2 (ESD) ± 15KV (air), ± 8KV (contact) requires Able to withstand 8/20us 24A (12A) energy |
Input |
an input RJ45 interface |
Output |
an output RJ45 connector and a DC output interface |
Data transfer rate |
10/100/1000Mbps |
The maximum transmission distance |
100 meters |
